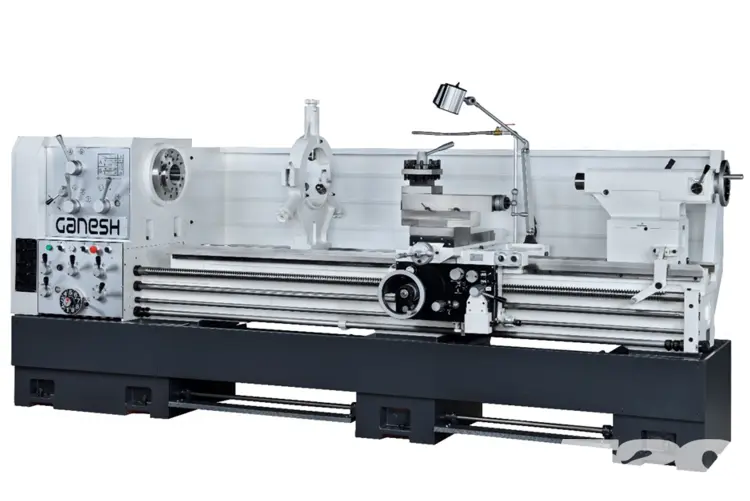

Ganesh GTD - 30 Geared-Head Engine Lathe
Engine Lathes| $49,990.00 USD |
More Pricing and options available in Documents Link Above
| Swing | 29.92" |
| Centers | 47" |
| Spindle Bore | 418" |
| Power | 15 hp |
| RPM | 0 RPM |
| Swing Over Cross Slide | 19.69" |
| Dimensions | 102”x49”x57”, |
| Weight | 6945 lbs |
Productivity Package:
Longitudinal & Cross Rapid Feeds
4-Position Longitudinal Feed Stop
11.5” Steady Rest (Capacity: 20 - 260mm)
(Roller Bearing Style Optional)
Tailstock with 2-Speed Quill Advance
Coolant System
Dead Center and Foot brake
Chuck Guard with Interlock
Spindle Taper MT-5 Reduction Sleeve
Full Length Back Splashguard
Machine Leveling Pads & Tools
4-Way Toolpost
Halogen Work Light (55 Watts)
