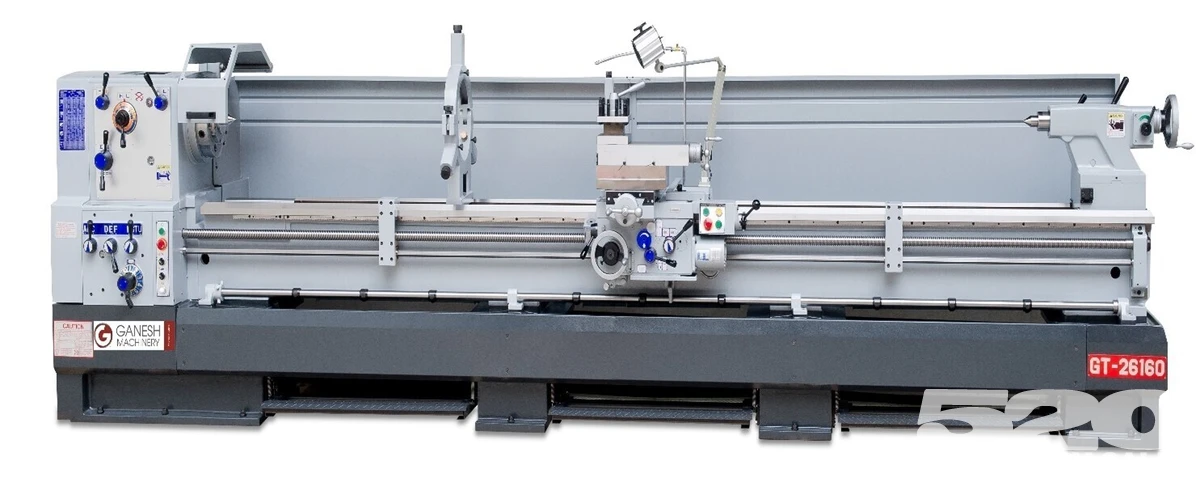

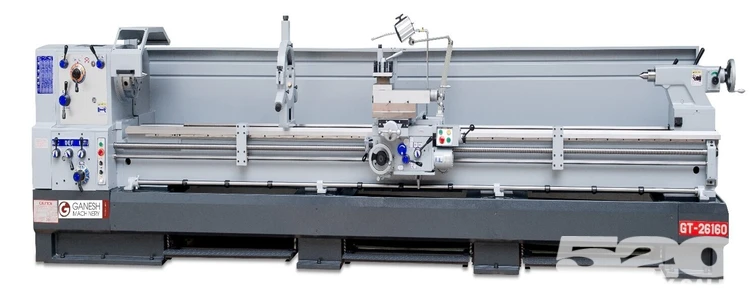

Ganesh GTW-26 Manual Precision Lathe
Engine Lathes
.jpg)
New. More options and pricing in document link above.
| Swing | 26" |
| Centers | 80" |
| Spindle Bore | 4.125" |
| Power | 15 hp |
| RPM | 1,200 RPM |
| Swing Over Cross Slide | 18.063" |
| Dimensions | 140” x 51” x 54”, |
| Weight | 6238 lbs |
• 15-HP Spindle Motor
• Spindle Speeds from 15 – 1,200 RPM
• 12-Spindle Speed Gear-Ranges for High-Torque
• D1-11 Camlock Spindle
• 4-1/8” Spindle Bore
• Longitudinal Rapid Traverse Positioning
• Efficient 2-Speed Quill Advance
• 33-1/4” Swing in 6.5” Wide Gap
Steady Rest with Roller Bearings - Capacity 4”-12”
Follow Rest
Full-Length Back Splash Guard
Chuck Guard with Safety Interlock Switch
Foot brake
Halogen Work Light (55 Watts)
Machine Leveling Pads & Operating Hand Tools
